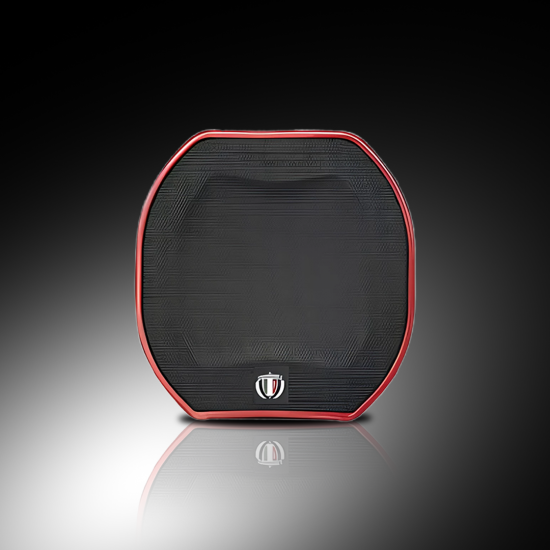

Point Source - Red 9

The Red – 9 is a high-performance, versatile passive speaker system designed to deliver unmatched sound reinforcement. It features a powerful 10-inch (254 mm) coaxial driver paired with a 1.34-inch (34 mm) highfrequency driver. This two-way, full-range configuration, combined with a passive crossover, ensures exceptional audio quality.

Applications

Lounge
Pub/Bar
Night Clubs
Multi-functional room

Stadiums

Type	Two-way Coaxial full range passive loudspeaker
Frequency Response	75 Hz – 19 kHz
LF Drivers	1x 10” (254 mm) Coaxial Driver
HF Drivers	1 x 1.34” (34 mm) HF Driver
RMS Power	200W
Program Power	400W
Peak Power	800W
Sensitivity（1W/1m)	96 dB
Max SPL (Continuous/1m)	121 dB
Max SPL (Peak/1m)	124 dB
Nominal Impedance	8 Ohms
Crossover Mode	Passive
Dispersion	70° (H) x 70° (V)
Cabinet Material	Glass Fiber Reinforced Plastic with Car Paint Coating
