Louis Martin F-12

Louis Martin F-12
New

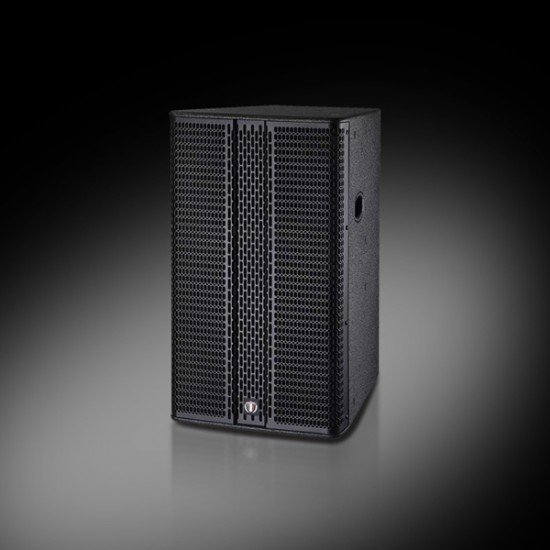

Louis Martin F-12

Point Source - F12

The F-12 has one powerful 12” (304 mm) LF driver with 1.45” (37 mm) HF. It is a high-performance, versatile, passive speaker system designed for unmatched sound reinforcement. Featuring a passive crossover, two-way full-range configuration, it is ideal for install & portable use including Main FoH, Night Clubs, lounges, Multipurpose Hall, Live Setup etc. With flat frequency response, the cabinet offers uncoloured, transparent sound quality. Crafted from high density plywood, it is suitable for both installation and portable use. The cabinet's design emphasizes vocal clarity, fidelity, and minimal distortion without compromising transient response.

Applications

  • Multi-functional Room
  • Live portable setup
  • Night Clubs

    TypeTwo-way full range passive loudspeaker
    Frequency Response55 Hz – 19 kHz
    LF Drivers1x 12” (304 mm) LF Driver with 3” Voice coil
    HF Drivers1 x 1.45” (37 mm) HF Driver
    RMS Power400W
    Program Power800W
    Peak Power1600W
    Sensitivity(1W/1m)97 dB
    Max SPL (Continuous/1m)126 dB
    Max SPL (Peak/1m)129 dB
    Nominal Impedance8 Ohms
    Crossover ModePassive
    Dispersion90° (H) x 50° (V)
    Cabinet MaterialHigh density plywood

Write a review

Note: HTML is not translated!
Bad Good
Captcha
  • Stock: In Stock
  • Model: F-12
  • Weight: 25.00kg
  • Dimensions: 365.00mm x 398.00mm x 600.00mm
₹107,000/-
Ex Tax: ₹107,000/-
Price in reward points: 1000
