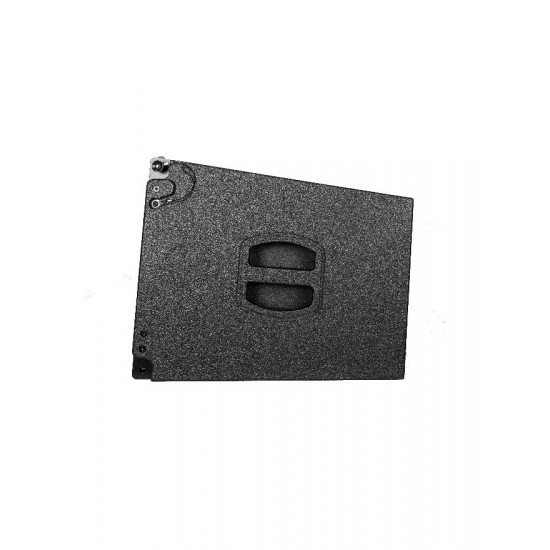

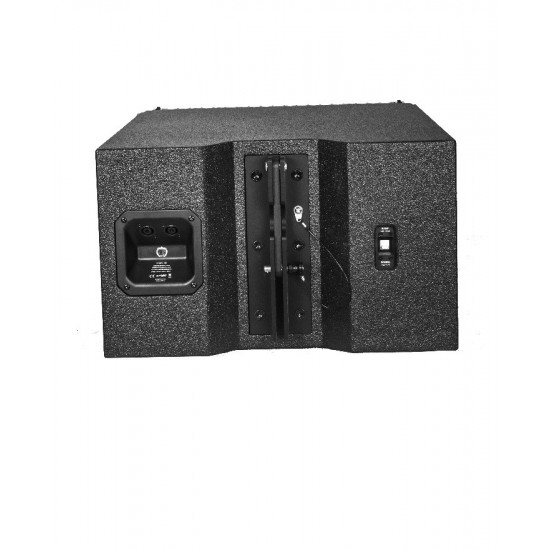

Line array - Cox 12

The Cox – 12 has one powerful 12” (304 mm) coaxial driver with 1.5” (38 mm) HF. It is a high-performance, versatile, passive line array speaker system designed for unmatched sound reinforcement. Featuring a passive crossover, two-way full-range configuration, it is ideal for rental market for small to medium format application along with high end install applications, including night clubs, auditorium, multipurpose hall etc.

Applications

Live Events
Auditorium & Theaters
Convention Centers

Stadium & Sport Complex

ype	Two-way Coaxial full range passive line array speaker
Frequency Response	60 Hz – 19 kHz
LF Drivers	1x 12” (304 mm) Coaxial Driver
HF Drivers	1 x 1.5” (38 mm) HF Compression Driver
RMS Power	450W
Program Power	900W
Peak Power	1800W
Sensitivity（1W/1m)	98 dB
Max SPL (Continuous/1m)	127 dB
Max SPL (Peak/1m)	130 dB
Nominal Impedance	8 Ohms
Crossover Mode	Passive
Dispersion	100°(H) x 10° (V)
Cabinet Material	High density multi-layer plywood
