The Purple Audio MC77 is a high-end, discrete FET limiter that re-engineers the iconic 1176 Rev. E circuit, offering fast, transparent compression with modern enhancements for professional audio applications.

Design and Circuitry

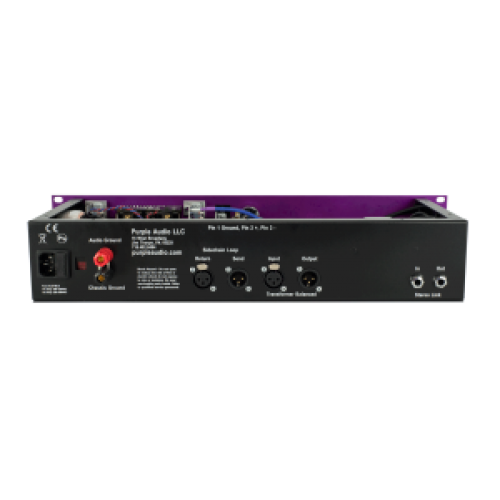

The MC77 features a discrete transistor audio path and a single-element Class A output amplifier, preserving the sonic character of the original 1176 while using modern, reliable components. It employs a Field Effect Transistor (FET) as the first active component in the signal chain, enabling large amounts of gain reduction with minimal distortion. The unit includes transformer-balanced XLR inputs and outputs, ensuring high signal integrity and noise rejection.

Key Features and Controls

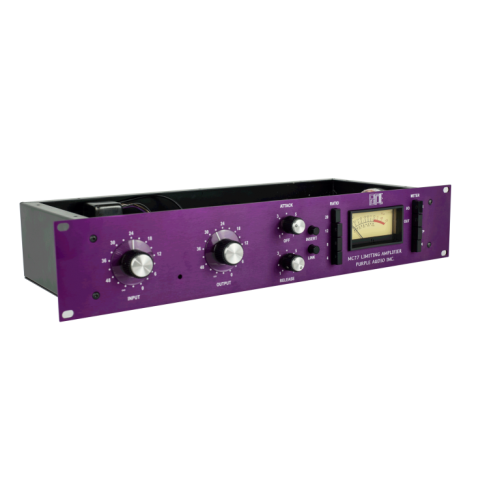

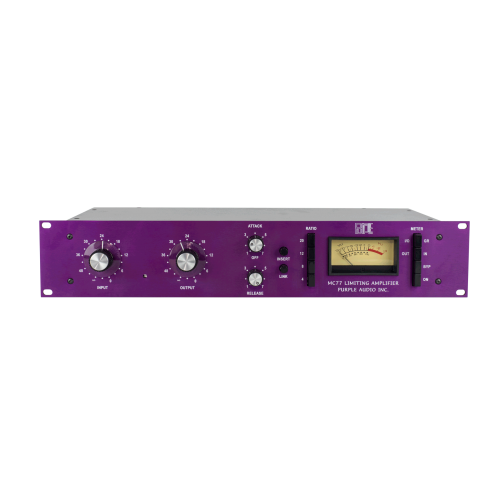

The MC77 provides four selectable compression ratios—4:1, 8:1, 12:1, and 20:1—allowing precise control over dynamics. Attack time is continuously adjustable from 20 to 800 microseconds, enabling ultra-fast response to transients, while release time ranges from 50 milliseconds to 1.1 seconds. It includes a front-panel switch for true bypass via a sealed relay, improved stereo linking, and a sidechain insert loop or key input for external sidechain control.​

Modern Enhancements

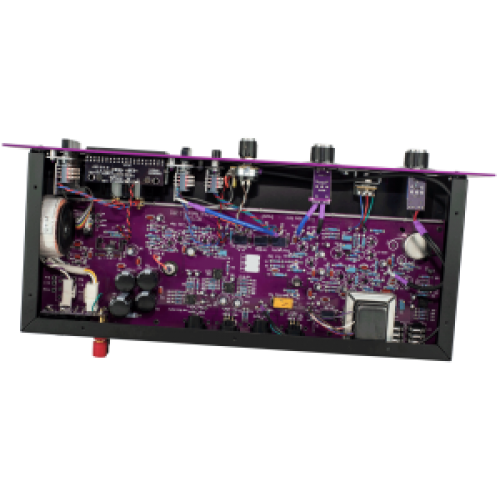

New features on the MC77 include a buffered VU meter that can monitor input or output levels at +4dBu, LED meter lights that do not burn out, and a ruggedized design with a heavy-gauge steel enclosure and PCB stiffeners for durability. The unit supports switchable 115V/230V operation, making it suitable for international use. It comes with a 3-year warranty and is built for longevity using premium components like conductive plastic potentiometers and a toroidal power transformer.

Applications

The MC77 is widely used in recording studios for tracking and mixing, excelling on vocals, bass, kick drums, and stereo busses to add punch and glue. Its fast attack and versatile ratios make it ideal for both subtle leveling and aggressive limiting. A plugin version, developed by Brainworx and endorsed by Purple Audio, includes additional features like TMT (Tolerance Modeling Technology), M/S processing, and parallel mix control for digital workflows.
